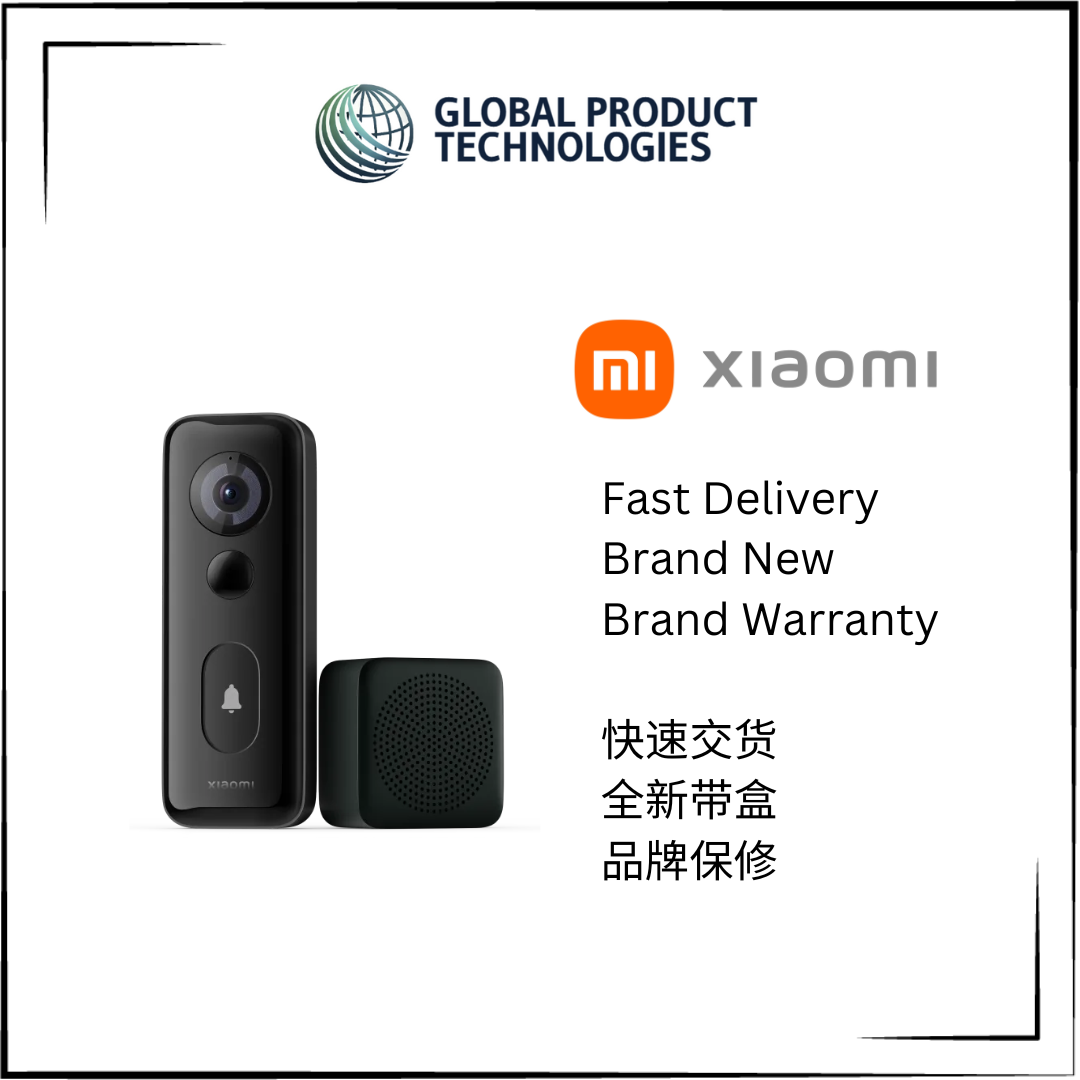

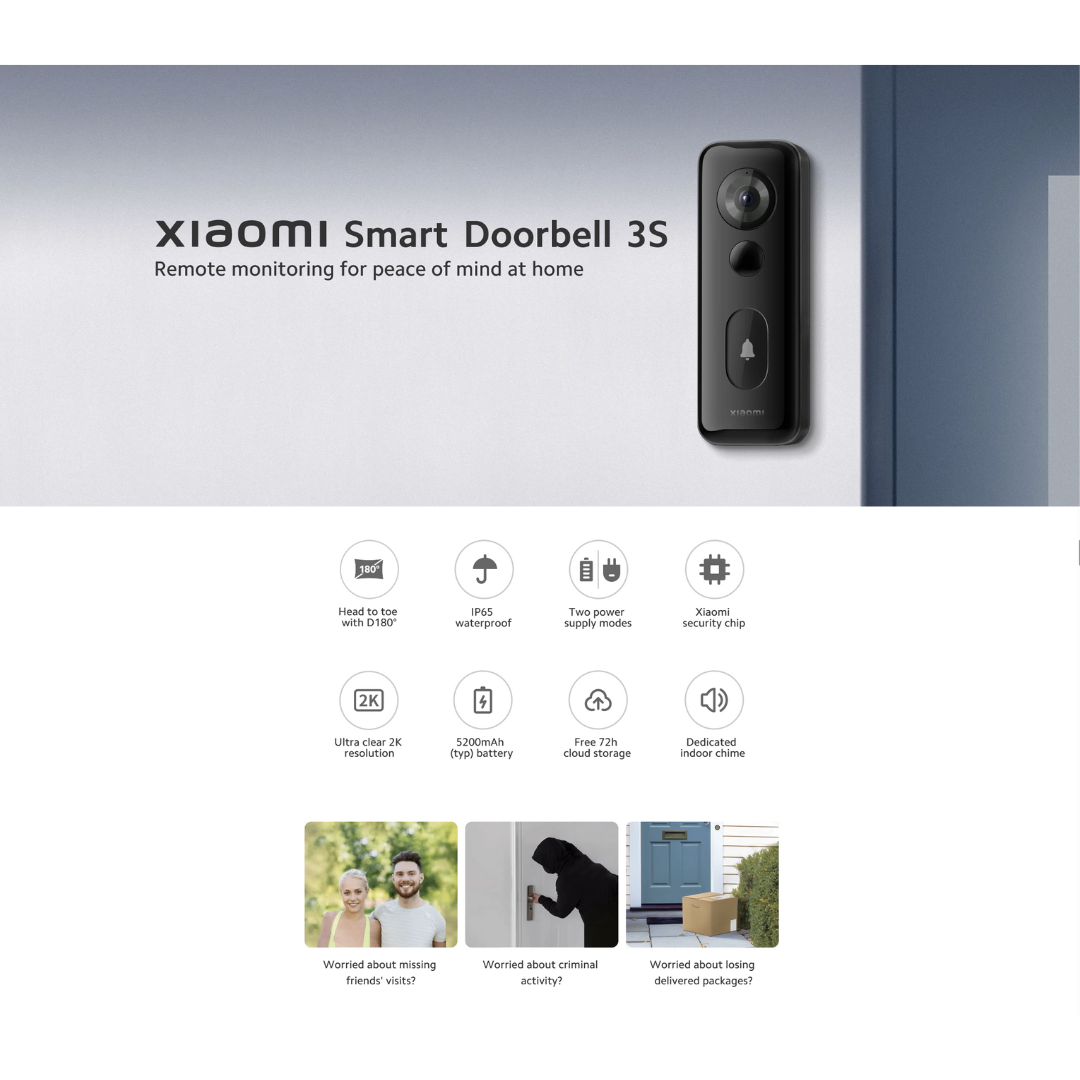

XIAOMI SMART DOORBELL 3S

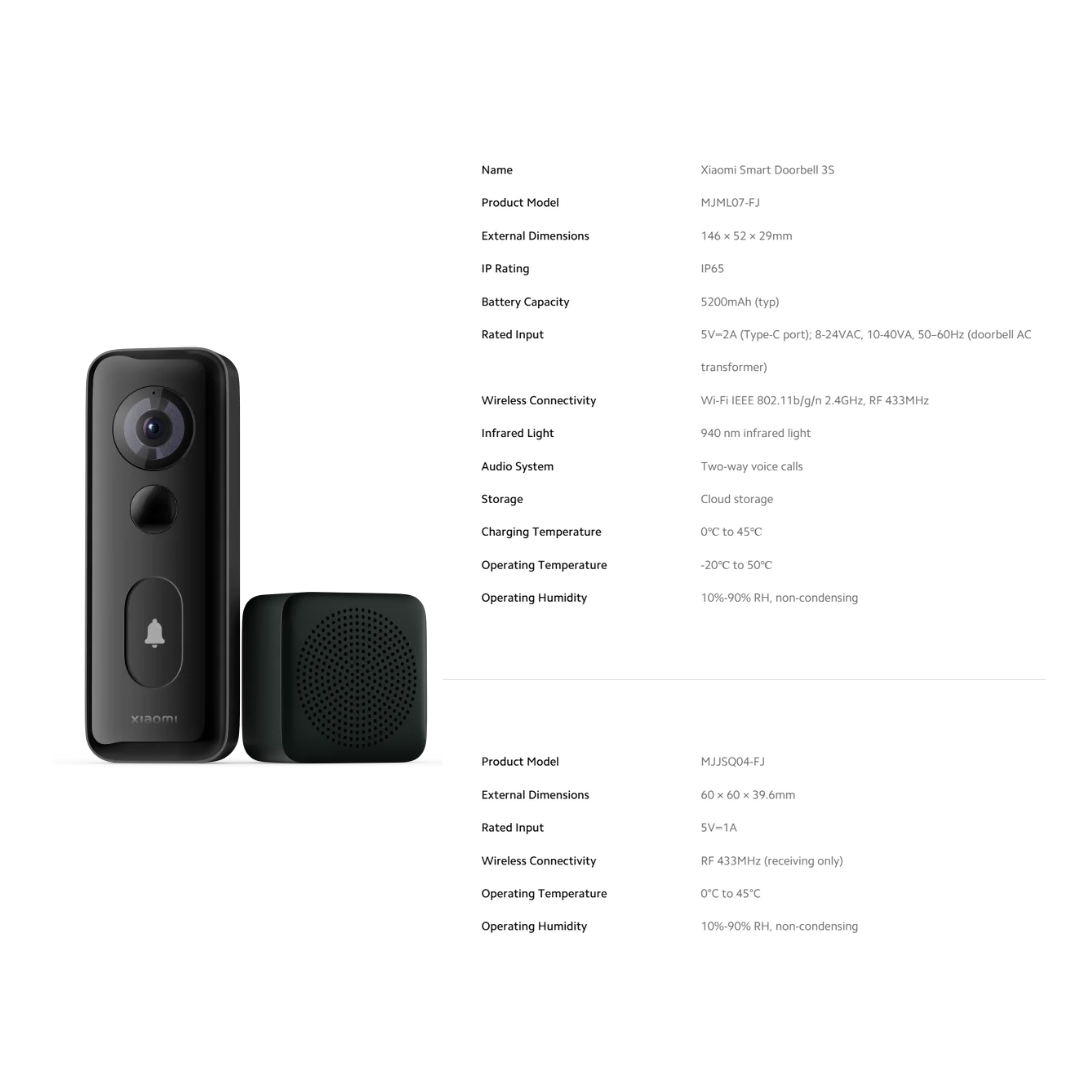

Product Specifications

Smart Doorbell

Name:
Xiaomi Smart Doorbell 3S

Product Model:
MJML07-FJ

External Dimensions:
146 × 52 × 29 mm

IP Rating:
IP65

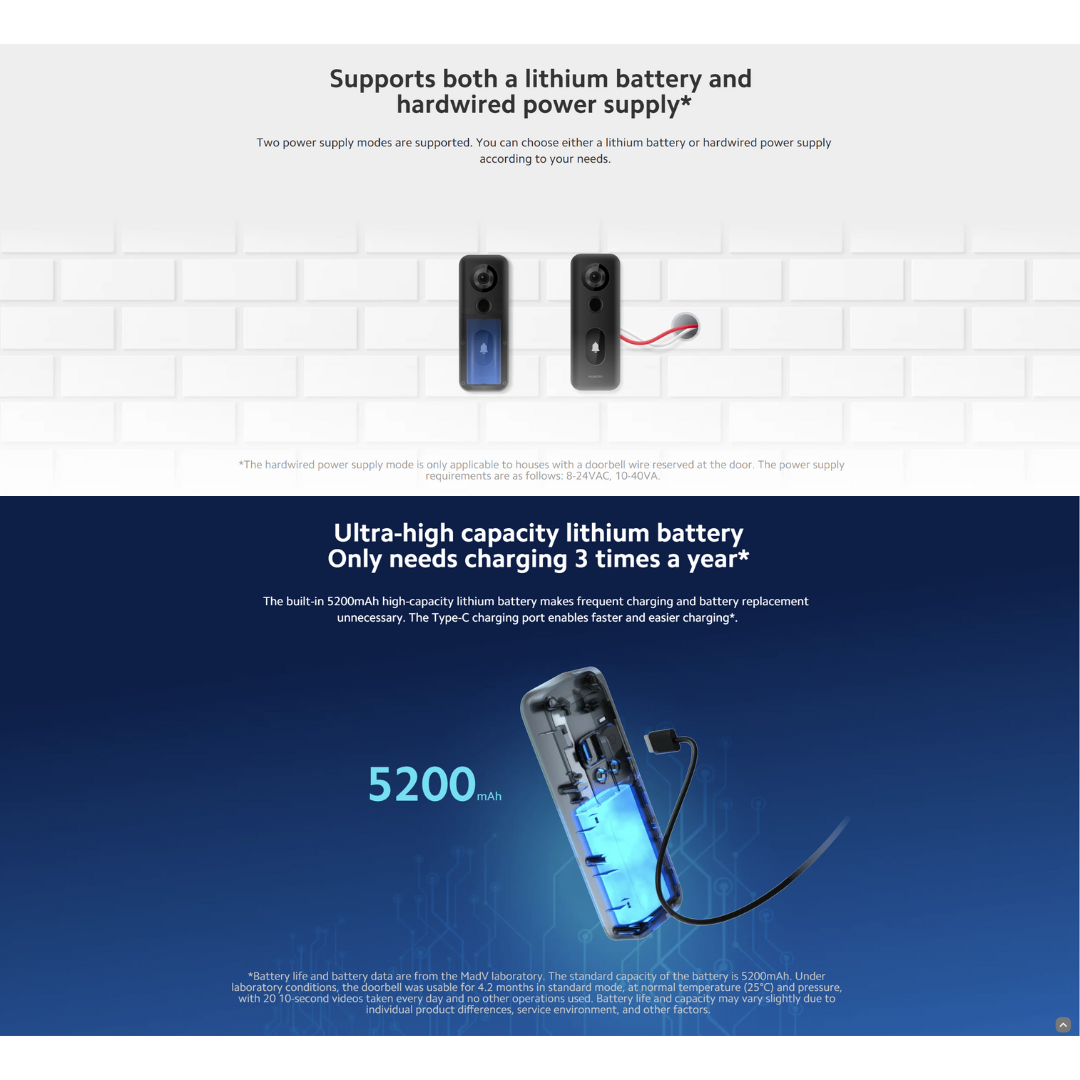

Battery Capacity:
5200 mAh (typical)

Rated Input:

• 5V⎓2A (Type-C port)

• 8–24VAC, 10–40VA, 50–60Hz (doorbell AC transformer)

Wireless Connectivity:

• Wi-Fi IEEE 802.11b/g/n 2.4GHz

• RF 433MHz

Infrared Light:
940 nm infrared light

Audio System:
Two-way voice calls

Storage:
Cloud storage

Charging Temperature:
0℃ to 45℃

Operating Temperature:
-20℃ to 50℃

Operating Humidity:
10% – 90% RH, non-condensing

Chime Specifications

Product Model:
MJJSQ04-FJ

External Dimensions:
60 × 60 × 39.6 mm

Rated Input:
5V⎓1A

Wireless Connectivity:
RF 433MHz (receiving only)

Operating Temperature:
0°C to 45°C

Operating Humidity:
10% – 90% RH, non-condensing

Package Contents

• Smart Doorbell ×1

• Mounting Base ×1

• Angle Holder ×1

• Chime ×1

• Removal Pin ×1

• Type-C Charging Cable ×1

• Screws Bag:

  • Wall Screw ×2

  • Wall Plug ×2

  • Angle Holder Screw ×2

• U-type Extension Wire ×2

• Insulating Cap ×2

• U-type Double Terminal Wire ×1

• User Manual ×1

• Attention Sticker ×1

• Warranty Notice ×1
